New Apache Sprayer Models

HS1100 Hydrostatic Drive
Maximum Crop Clearance

Conquer all-season applications with one machine—the Apache HS1100 rear boom sprayer. Equipped with a 60″–70″ crop clearance that adjusts hydraulically on the go with a push of a button.

**Product Tank Capacity**: 1,120 gallons
**Weight:** 28,225 lbs
**Rated Horsepower:** 300HP
**Engine:** Cummins QSB6.7 300HP (rated)
**Transmission:** Rexroth Hydrostatic
**Crop Clearance:** 60″-70″ hydraulic adjustable
**Four-Wheel Steer**: Slope compensation and back axle correction.
**Crab-Steer:** Enhanced mobility in tight places

AS1250 Mechanical Drive
Ultimate Capacity

Apache AS1250 and AS1250XP are the largest capacity sprayers in the AS family, yet they weigh far less than the competition. The XP model features added horsepower to take on the most challenging conditions.

**Product Tank Capacity**: 1,200 gal
**Weight**: 21,200 lbs
**Crop Clearance**: 50″ with 18″ Drop Box All-Gear Final Drives
**Engine**: Cummins B6.7 Performance Series 260HP and 300HP (rated)
**Optional**: Stainless steel tank

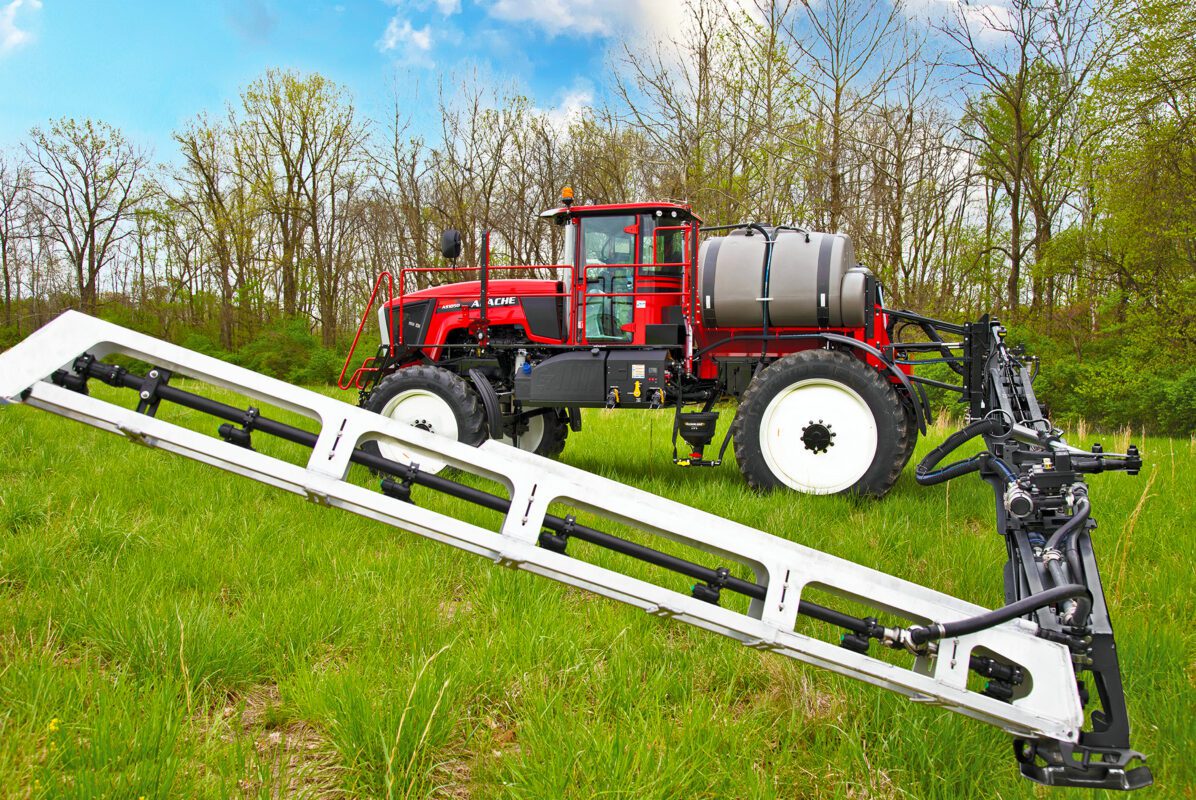

AS1050 Mechanical Drive

An Ideal Fit

Our 1,000-gallon AS1050 is an ideal fit for almost any operation. Large enough for higher rate application yet still lightweight, maneuverable with great visibility

**Product Tank Capacity**: 1,000 gallons
**Weight:** 22,200 lbs
**Engine:** Cummins QSB6.7 Performance Series 225HP (rated)
**Transmission:** ZF power shift 6 speed
**Crop Clearance:** 42″ with JCB planetary final drive or 50″ with 18″ drop box all-gear final drives

AS850 Mechanical Drive
Midsize Without Compromise

An ideal balance between our compact and large capacity-sized sprayers, the AS850 features an 800-gallon spray tank and a Cummins B4.5 Performance Series engine, so you won’t have to compromise spray capacity and reliability.

**Product Tank Capacity**: 800 gallons
**Weight:** 18,400 lbs
**Engine:** Cummins B4.5 Performance Series 200HP (rated)
**Transmission:** JCB Powershift 4-Speed
**Crop Clearance:** 42″ with JCB planetary final drive or 50″ with 18″ drop box all-gear final drives.

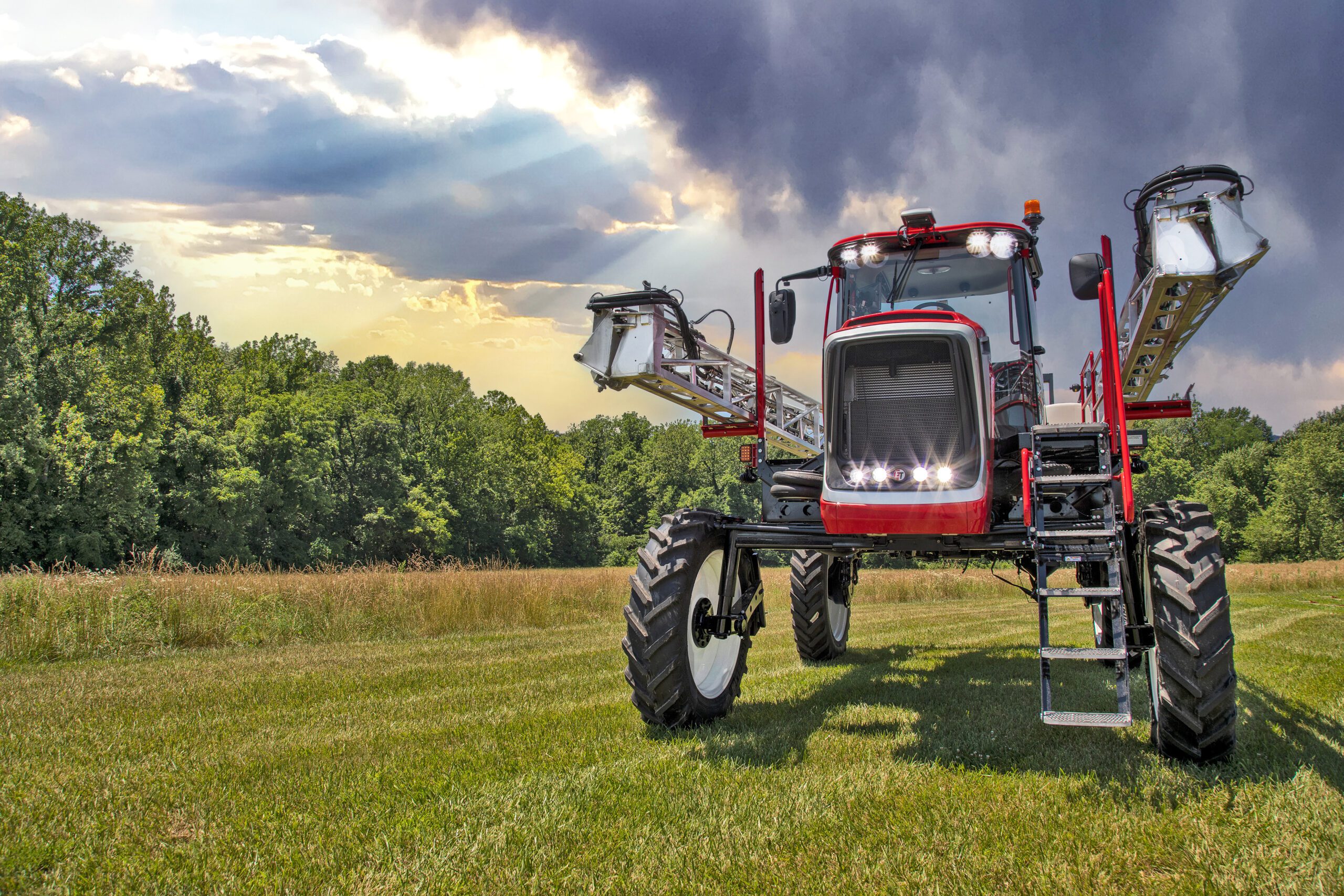

AS650 Mechanical Drive
Small But Tough

Rugged, nimble, and built to go where others won’t dare. The AS650 is one tough sprayer with comfort and upgrades to spare. Compact, lightweight, and agile — the AS650 is the best small self-propelled sprayer in the industry.
